MBGP/DVMRP usage: not stacked, just real, percentage.

Key:

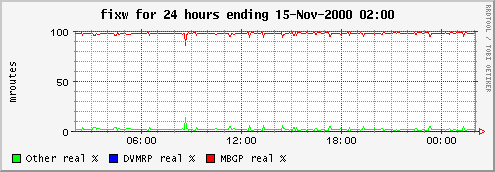

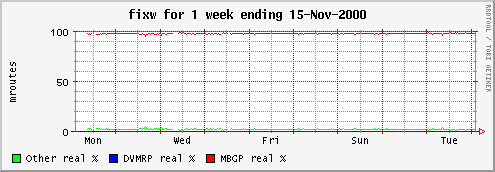

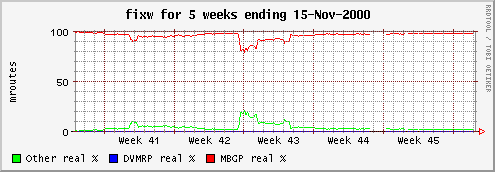

Unlike graphs 1-3, there is no stacking on this graph, so that changes in one value do not appear to affect another value. This graph contains the same data as graph #4, but scaled so that the total number of entries used to forward any data totals 100%.

green

Protocols other than DVMRP and MBGP.

blue

DVMRP

red

MBGP
